Water Pump for Marine Air Conditioner - 1250GPH
Water Pump for Marine Air Conditioner - 1250GPH
Water Pump for Marine Air Conditioner - 1250GPH
Water Pump for Marine Air Conditioner - 1250GPH
Water Pump for Marine Air Conditioner - 1250GPH
Water Pump for Marine Air Conditioner - 1250GPH

1250GPH Pump Marine Air Conditioner

€450.00
Tax included

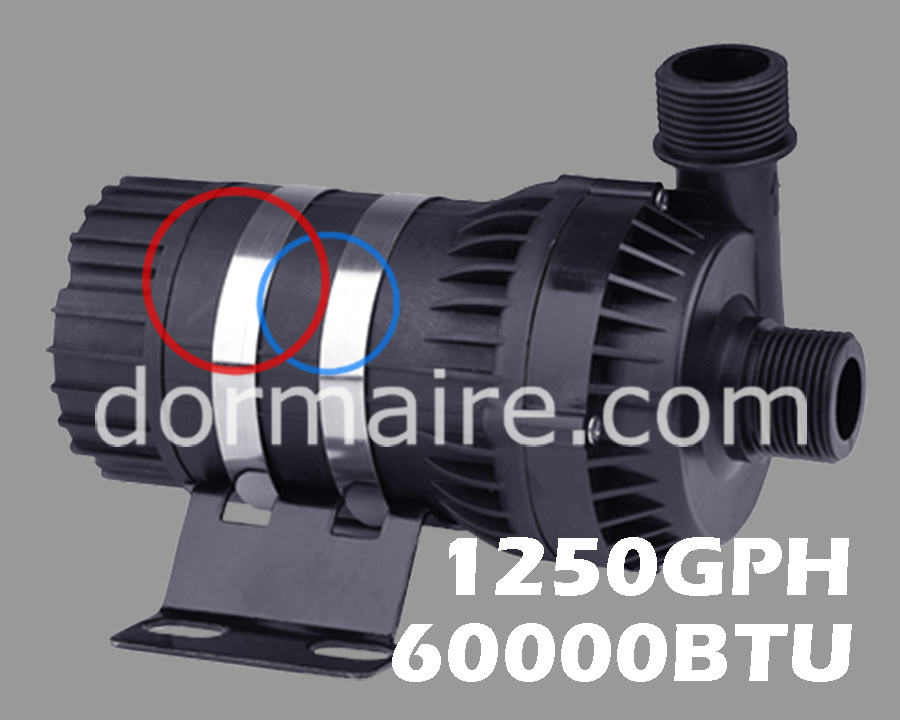

Water pump for Marine Air Conditioner 1250GPH



This Air Conditioning Water Pump has been specifically designed for this purpose. Is a pump with magnetic drive, so that it doesn´t require any seals in the shaft. Is a pump strong which can even work completely submersed in water without getting damaged.

water pump 1250GPH

PRODUCT DETAILS

- Suitable for marine air conditioners up to 60000BTU

- Suitable for pumping 1250 GPH (Gallons per hour)

- Small size and robust. Maintenance free

- Suitable for CONTINUOS USE. Life span over 30.000 hours s(Over 3,4 Years of continuos use!)

- Low noise about 40dB. Suitable for pumping 1250 GPH (Gallons per hour)

- Can RUN DRY without any damage

- Wide range of working voltage from 100 to 240Vac both 50 and 60Hz

- Can be used for Seawater, but also oil, acid and alkali solution

- IP68 Fully submersible and ignition protected

- Compatible for replacing pumps from other brands
CALPEDA B-CM 20E
CALPEDA B-CM20
CALPEDA B-C20
CALPEDA B- CM 20/A
CALPEDA B-C20-60/A
GIANNESCHI CBM 20 E/R
GIANNESCHI CB 22-95

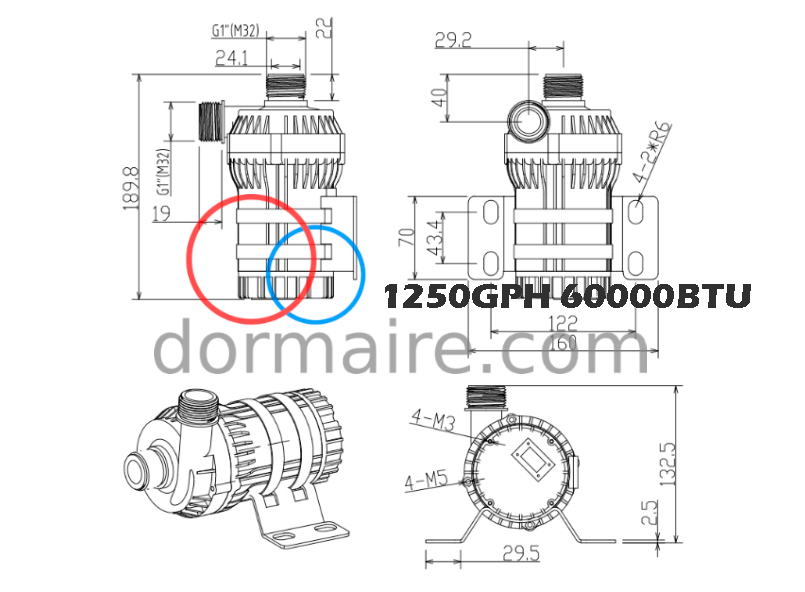

dimensions pump 1250GPH

SPECIFICATIONS

Max working temperature: 100℃（210℉）

Construction PA66 + GF30

Max Flow 4600 L/h

Max head 11 m

Water connections

Inlet: 1" NPT

Outlet: 1" NPT

Dimensions 189.8mm x 132.5mm x 160.0mm

Weight 9.9 Kg

Power consumption 120W

Dual Voltage 100-240Vac 50/60Hz or 5-26Vdc
Power supply included

dormaire
P1250GPH

INSTALLATION INSTRUCTIONS AND FREE ONLINE ASSISTANCE

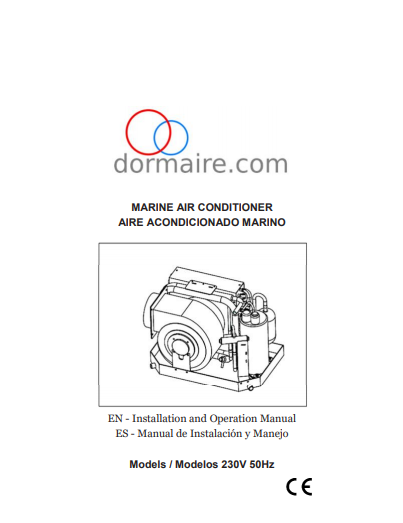

Each Dormaire marine air conditioner is supplied with its installation manual. Is a complete book written in English and Spanish, where you can find all the details that you will need to know for installing it as an specialist would do. Sections covered by the manual are: Size selection; Location; Air ducts; Seawater supply; Drain; Control panel; Electric wiring.

And if after reading the manual you still have doubts, ask us anything you need, we will be happy to answer immediately your WhatsApp messages as you meet doubts while doing the installation. Also contact us before purchase. We will provide you the best advice by an engineer specialized in marine air conditioning and is COMPLETELY FREE, so that you will not waste your money buying a machine that could be either too big or too small for your boat needs.

INSTALLATION ASSISTANCE NETWORK

¿DO YOU PREFER A TURNKEY INSTALLATION? We are in touch with distributors and installers in Spain and other countries. We can introduce you a nearby technician to quote your installation.

WARRANTY AND SPARE PARTS

All systems sold by Dormaire, enjoy 2 years warranty.
For repairs after warranty period is expired, you will have 2 options: Send it to us for being repaired by our technical service, or it can be repaired by a refrigeration technician of your choice, with the spare parts that we can supply at reasonable prices.

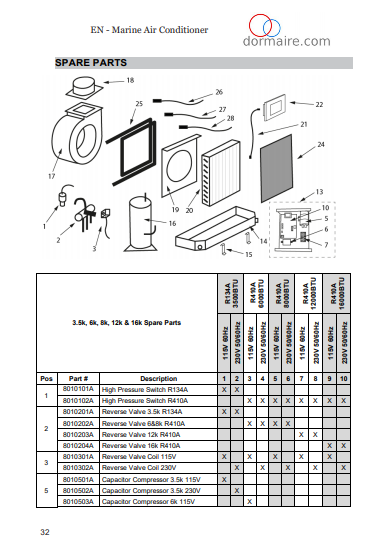

We know that a marine air conditioner is an important expense, and assume that you will not want to spend such amount of money in a machine unless it has a reliable after sales service. First of all, we create first quality products to prevent the necessity of spare parts. Nevertheless during their long service life our machines can face unforeseen situations, like for instance damage caused by external reasons like water splash or accidental hits. In the rear pages of the installation manual you will find a detailed machine breakdown that you can use to communicate with us and source any spares that you might need.

AVOID MISTAKES, GET WHAT YOU REALLY NEED

Before purchasing, you can contact us by email on dormaire@dormaire.com
You will get in touch with an engineer specialized in marine air conditioner for yachts, who will be happy to learn about your boat and check that the air conditioner fits your boat needs.

FREE DELIVERY WITHIN CONTINENTAL EUROPE

We are pleased to offer you FREE DELIVERY TO EUROPEAN COUNTRIES!

Spain and Portugal - Express Courier takes 1-2 days

Europe - Express courier takes 4-7 days

Free delivery not available for Canary Islands, Corsica, Sardinia, Malta nor Cyprus
