SELF CONTAINED MARINE AIR CONDITIONER WITH HEAT PUMP FUNCTION 12000BTU 220-240Vac 50Hz R410A

GENERAL INFORMATION ABOUT SELF CONTAINED UNITS

This unit delivers 12000BTU with heat pump function. Has a high speed blower and is perfect for cooling saloons and cabins in both sailing or powerboats. Its high quality rotary refrigeration compressor, makes it very quiet and reliable. Uses R410a refrigerant gas, which is considered as environmentally friendly.

It has a variable speed blower with automatic mode and internal motor for a compact installation footprint. The blower can be rotated for installation convenience. Is built on an easy to plumb stainless steel pan and its air filter can be removed for easy cleaning. The unit is operated with the included LED digital control. For added installation convenience, the electric panel is mounted separately.

CONTROL PANEL FUNCTIONS

Every air conditioning unit is provided with its touchscreen controller. It can be used to turn on and off the unit, adjust temperature, select mode (air conditioning, ventilation and HEATING), set fan speed and choose ºC or Fahrenheit.

RECOMMENDED FOR:

- Speed boats up to 40' (saloon under deck and without windows)
- Power boats up to 32' (enclosed pilot house)
- Sail boats up to 40'
- Saloons with large windows in power boats up to 46' (saloon only)

SPECIFICATIONS

QUALITY IN EVERY DETAIL

Marine grade corrosion resistant CuproNickel heat exchanger

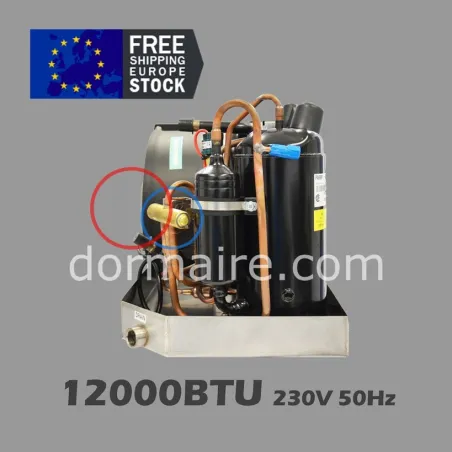

Quiet rotary compressor

Strong packaging

INSTALLATION ACCESSORIES

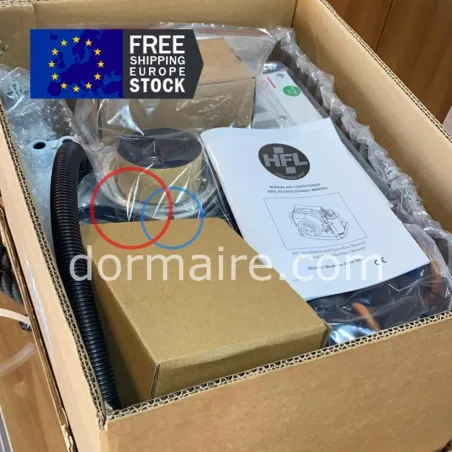

INCLUDED ELEMENTS:

• Self contained air conditioner

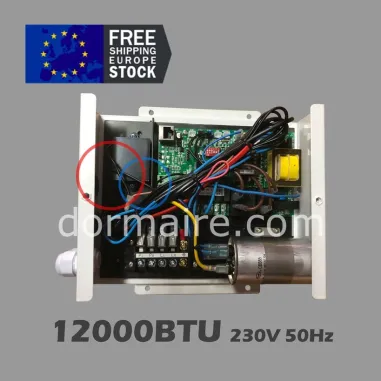

• Electric box
• Electronic control panel
• Display link cable
• Ambient temperature probe and cable
• 4 fixing brackets
• Instruction manual
• Anti-vibration foam to put under drain pan

NOT INCLUDED other installation accessories like water pump, water hoses, air ducts or vents. But we can provide a list of all the necessary accessories with their description and suggested suppliers.

All systems sold by Dormaire, enjoy 2 years warranty.
For repairs after warranty period is expired, you will have 2 options: Send it to us for being repaired by our technical service, or it can be repaired by a refrigeration technician of your choice, with the spare parts that we can supply at reasonable prices.

We know that a marine air conditioner is an important expense, and assume that you will not want to spend such amount of money in a machine unless it has a reliable after sales service. First of all, we create first quality products to prevent the necessity of spare parts. Nevertheless during their long service life our machines can face unforeseen situations, like for instance damage caused by external reasons like water splash or accidental hits. In the rear pages of the installation manual you will find a detailed machine breakdown that you can use to communicate with us and source any spares that you might need.

BRIEFLY

• 2 years warranty
• Reduced purchase and maintenance cost
• High efficiency by design
• Quiet. Will not affect your sleep
• Anodized evaporator

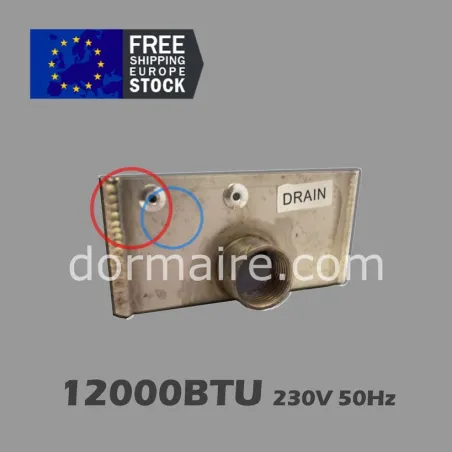

• Stainless steel drain pan
• High static pressure blower with automatic speed adjustment
• Heat pump function
• Easy installation
